Connecting Wirelessly to the Projector

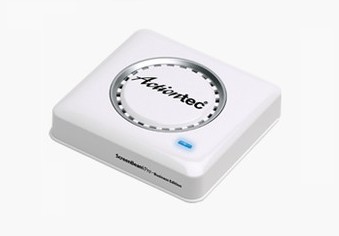

  • Be sure the Actiontec device is powered on. Power is indicated by a blue light on the device.Actiontec Wireless Display Receiver

    Turn on the smart board or projector. If you do not see the Actiontec ScreenBeam image change the input on the smart board or projector.



    • Smart boards - change the input by selecting computer 1 or computer 2 on the smart board panel
    • Projectors - change the source input with the remote or button on projector



    Slide your finger from right to left on your screen to open the action center on your device

    Click on the “connect” square to turn it on.

    You will see a list of devices available to choose from. Choose the correct device based on the room you are currently in. Here's an example: HS-311-WIDI  is the actiontec device in High school room 311.  You will most likely see

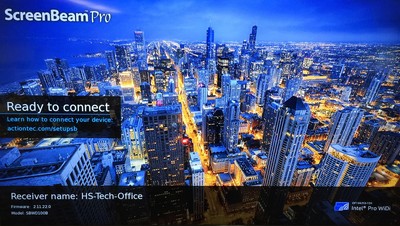

    The first time you log on you will need to enter the pin number that is projected on the screen. Actiontec Screen

    Wait a couple of seconds and you should observe your device’s screen being projected. You may need to use your device for the screen to pop up.

    To disconnect simply slide your finger on the your screen from right to left to bring up your action center.  Click the blue square that says “disconnect”.
